Outstanding Features
1. Make any flat surface to be interactive
2. One-time Calibrating
3. Smooth Handwriting and high precise
4. Multi-writing(up to 64 users)
5. The USB cable could be extend to 24m

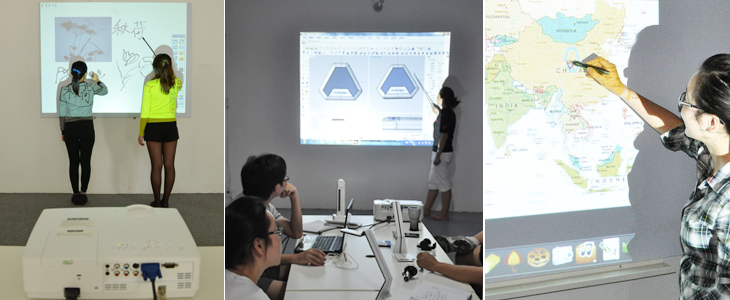

Application

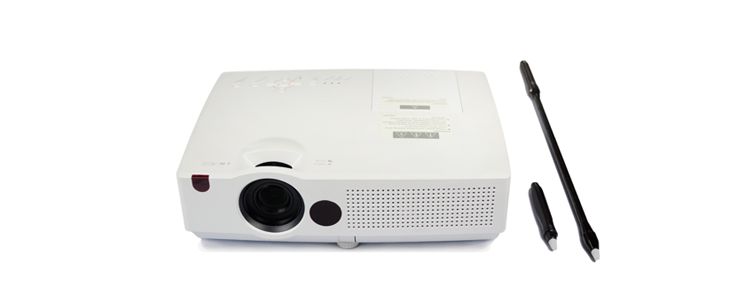

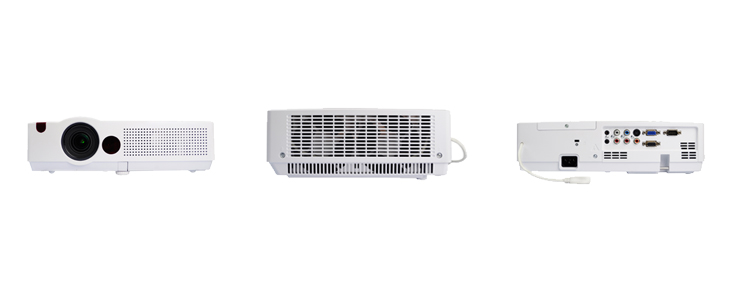

Projector
Dimensions(W x H x D)
327 mm x 241 mm x 87 mm
Net weight
2.9kg
Native Resolution
1024 x 768
Display technology
0.63”LCD
Brightness
3000 ANSI lumens
Contrast Ration
800:1
Lamp
230W NHS
Lamp life
4000 Hrs(ECO), 3000 Hrs(Normal)
Projection Method
Ceiling, Front, Rear
Power Consumption
285W
OSD Languages
Multi language(English, German, Spanish, Portuguese)
Feet adjustment
10°
Interactive function
Movement Detection Technology
Infrared
Active Area(max projection size)
150 inch diagonal
Active Area(horizontal angle)
33+/- 2 degrees
Active Area(vertical angle)
0-30 degrees
Calibration Technology
Infrared Positioning
Active Distance(from projection screen)
3.2 - 5 m
Connectivity Interface
1 x USB Cable (connection distance up to 24 m)
Power Requirement
DC 5V (from USB port)
< 1.5 W
E-pen
LED light
Power requirement
3V CR 123A x1
Pen Body Dimension
13.2cm(length); 2cm(diameter)
Weight
45g
E-pointer
Control buttons
1 button(left and right click of a mouse)
90g
Length
56cm
